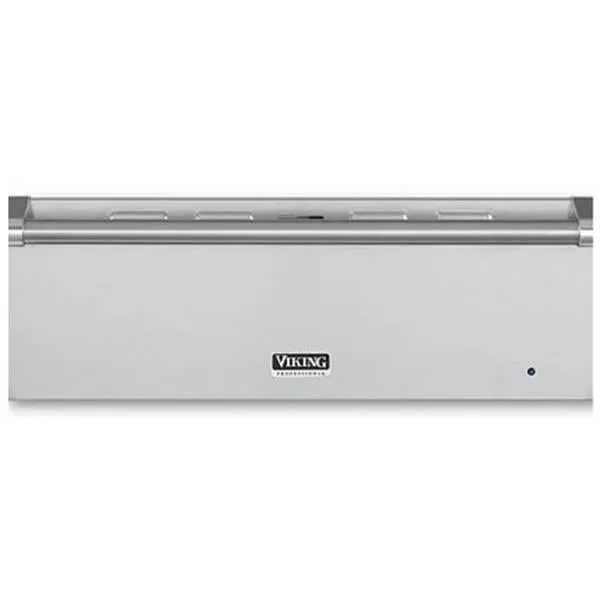

Viking Professional Custom Series VEWD530SS
30" Warming Drawer


1.6 cu. ft. Capacity 450 Watt Element
90 to 250F Temperature Settings
Moisture Selector
Multiple Design Options
Stainless Steel

THIS UNIT ISUSED.some flaws as shown in the pictures:

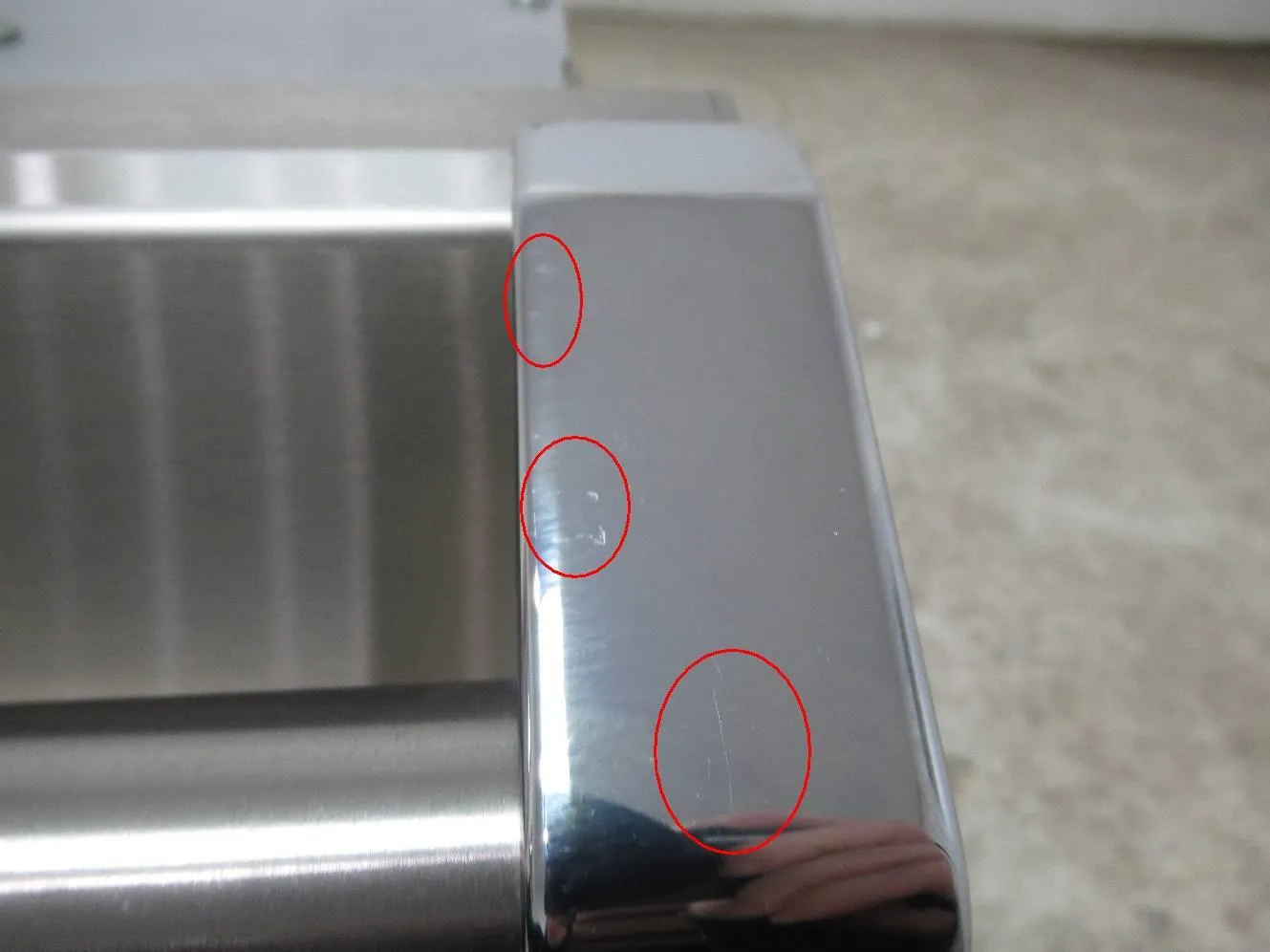

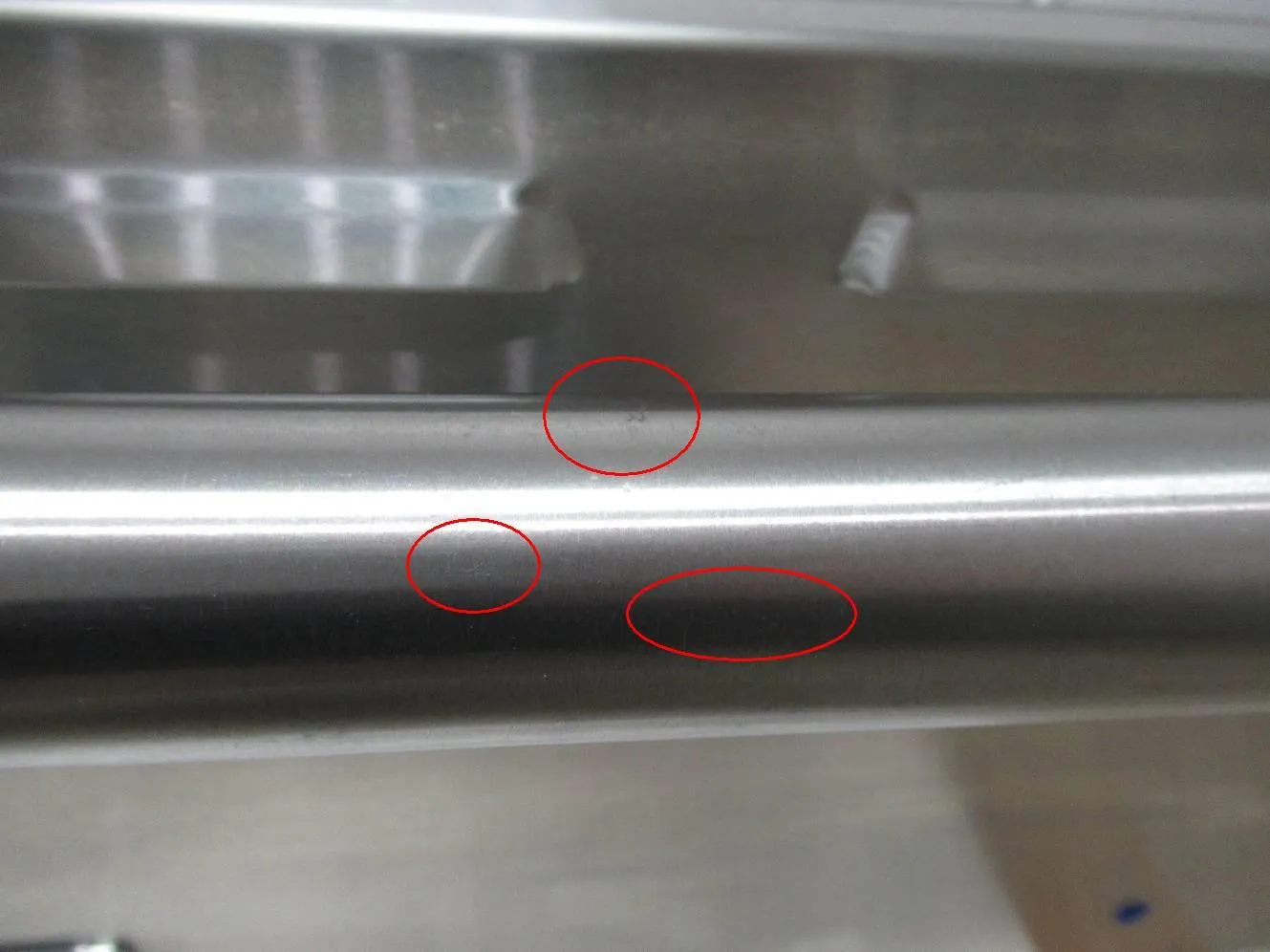

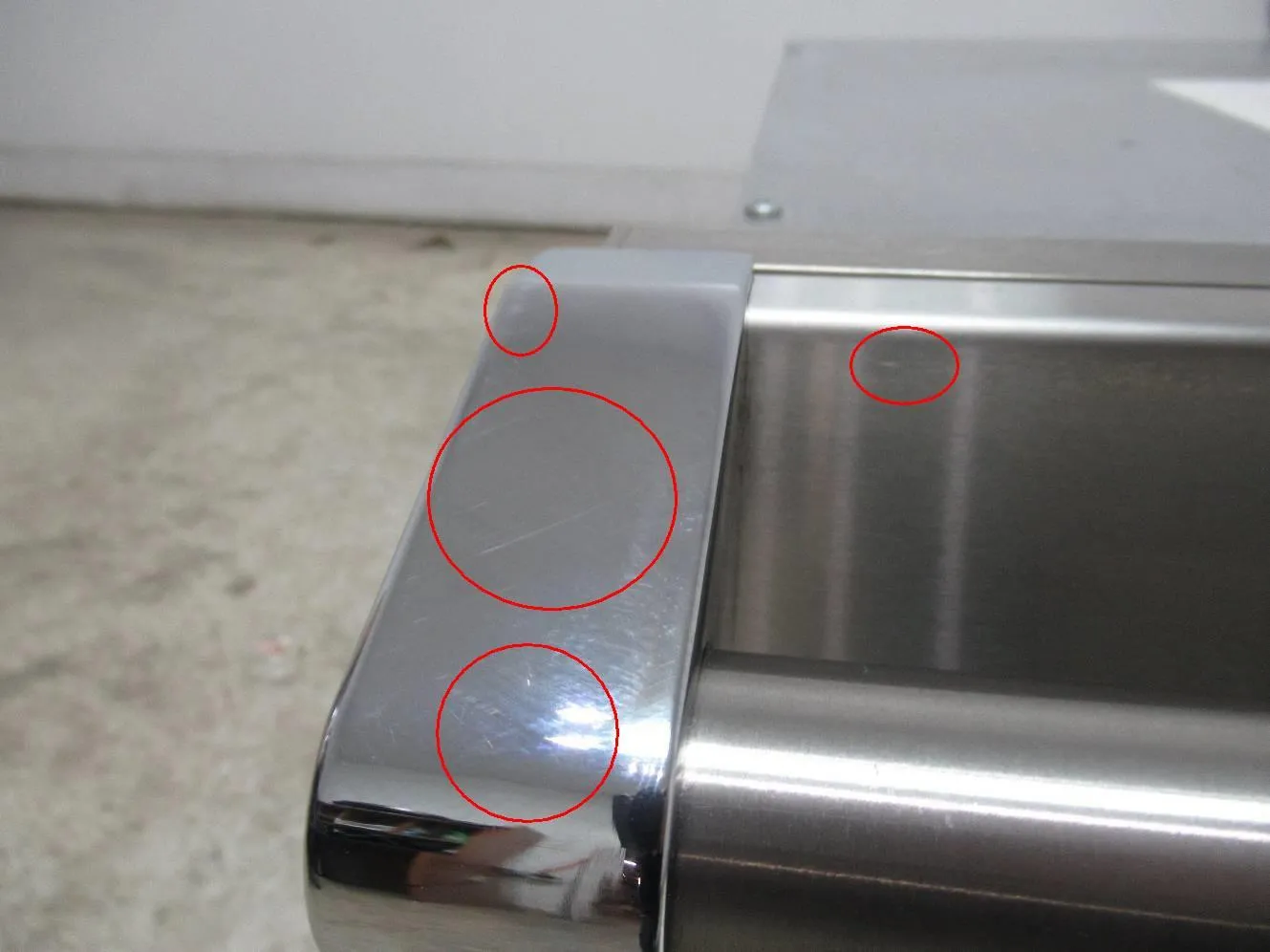

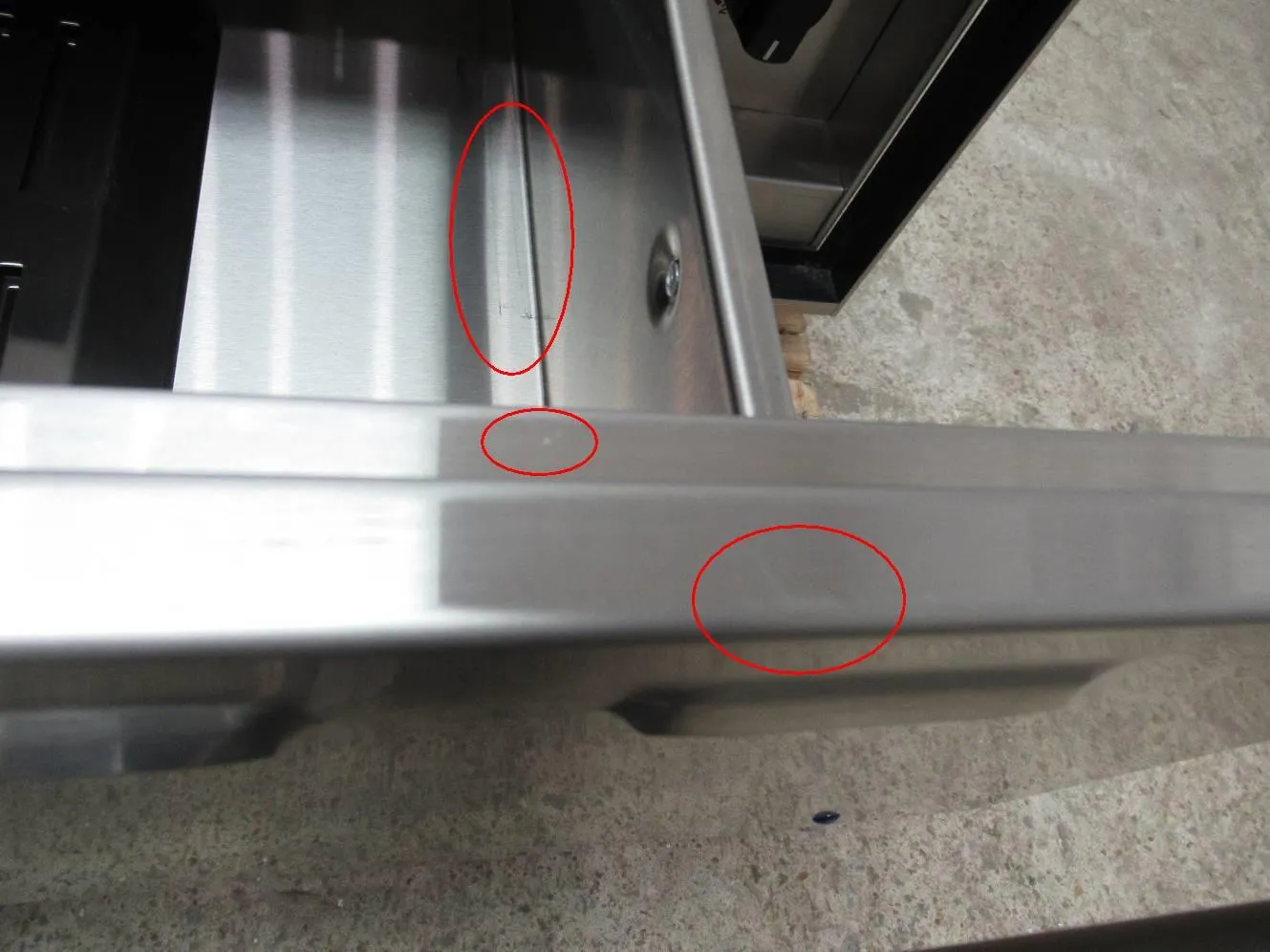

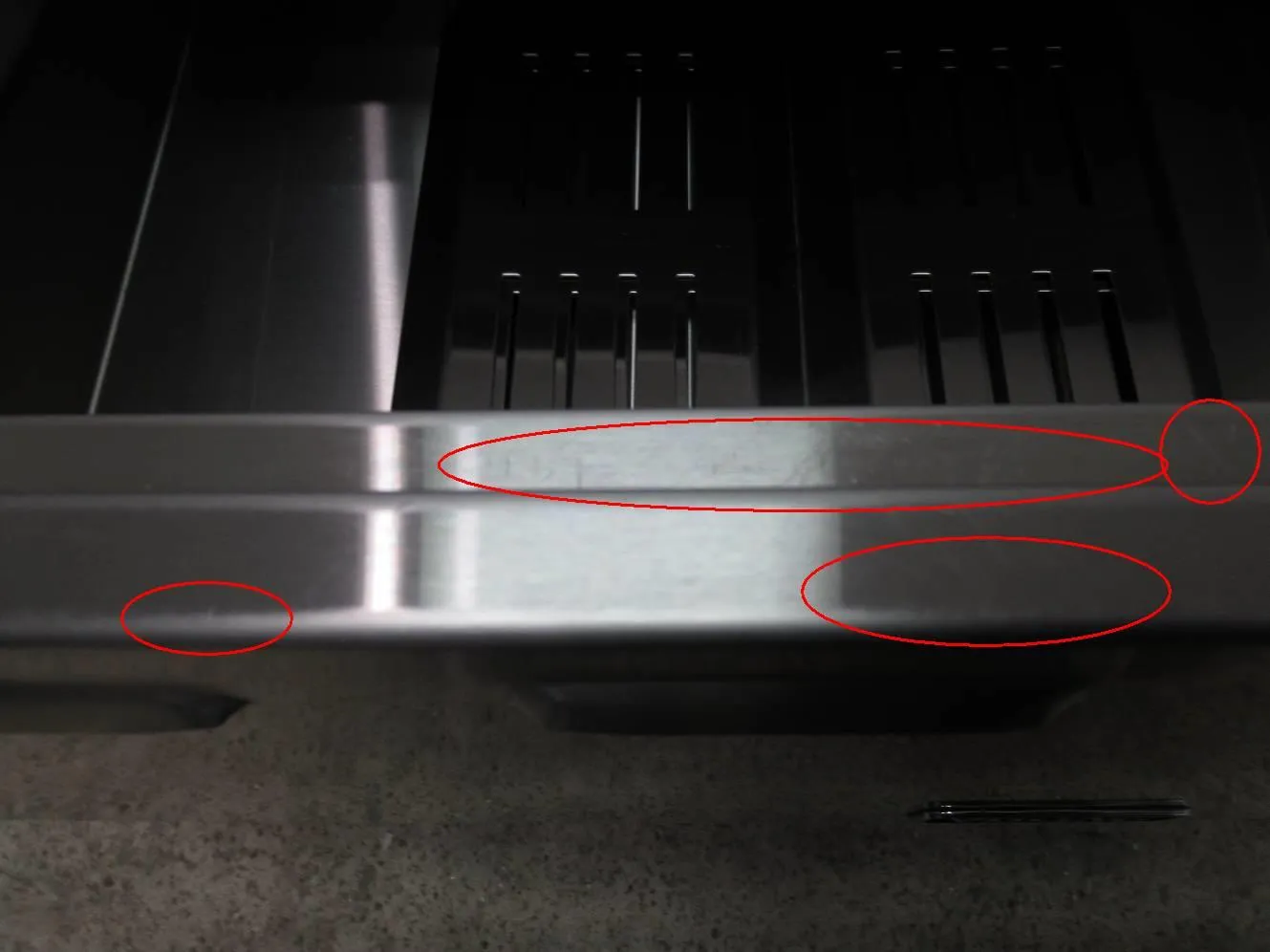

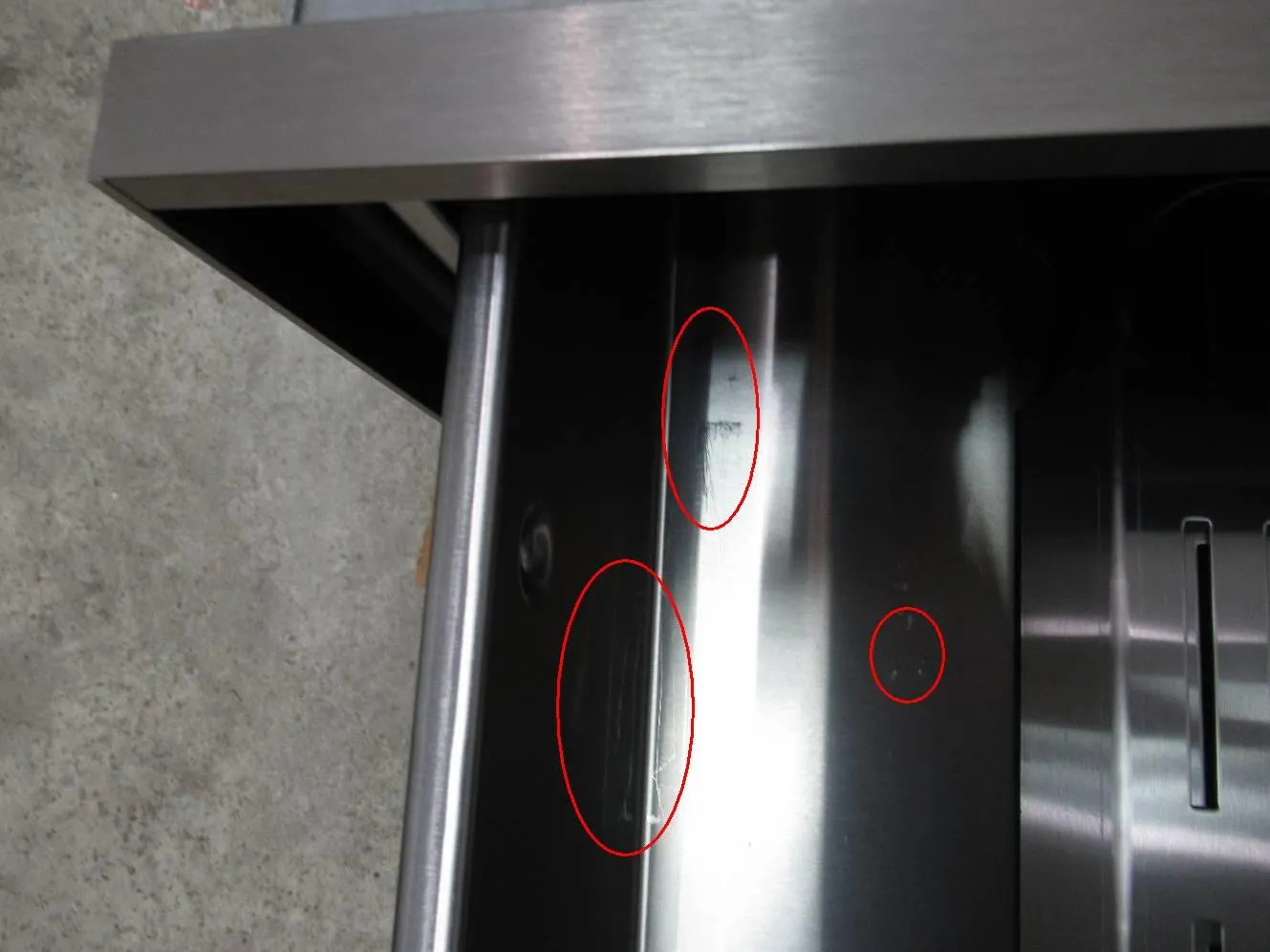

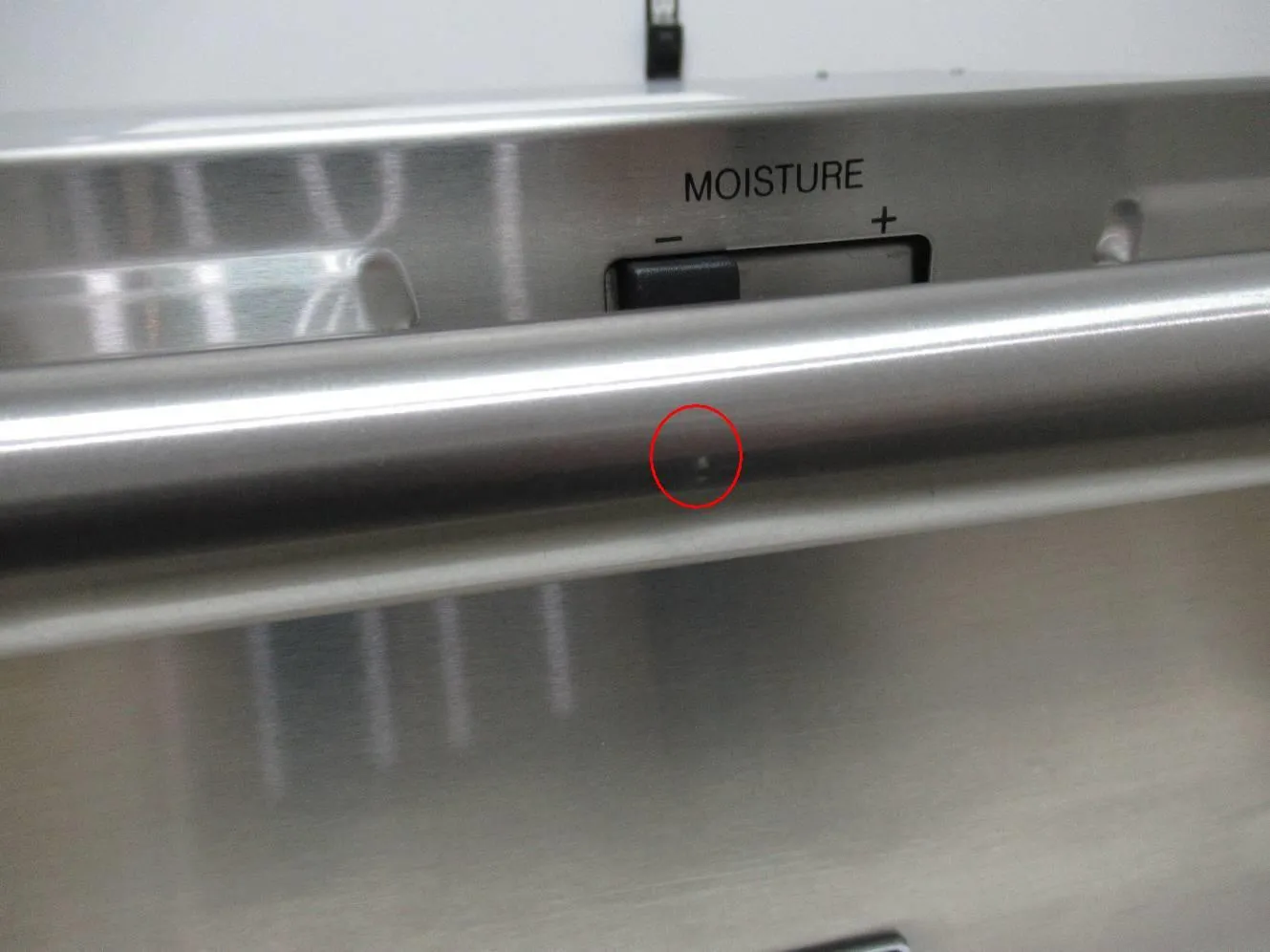

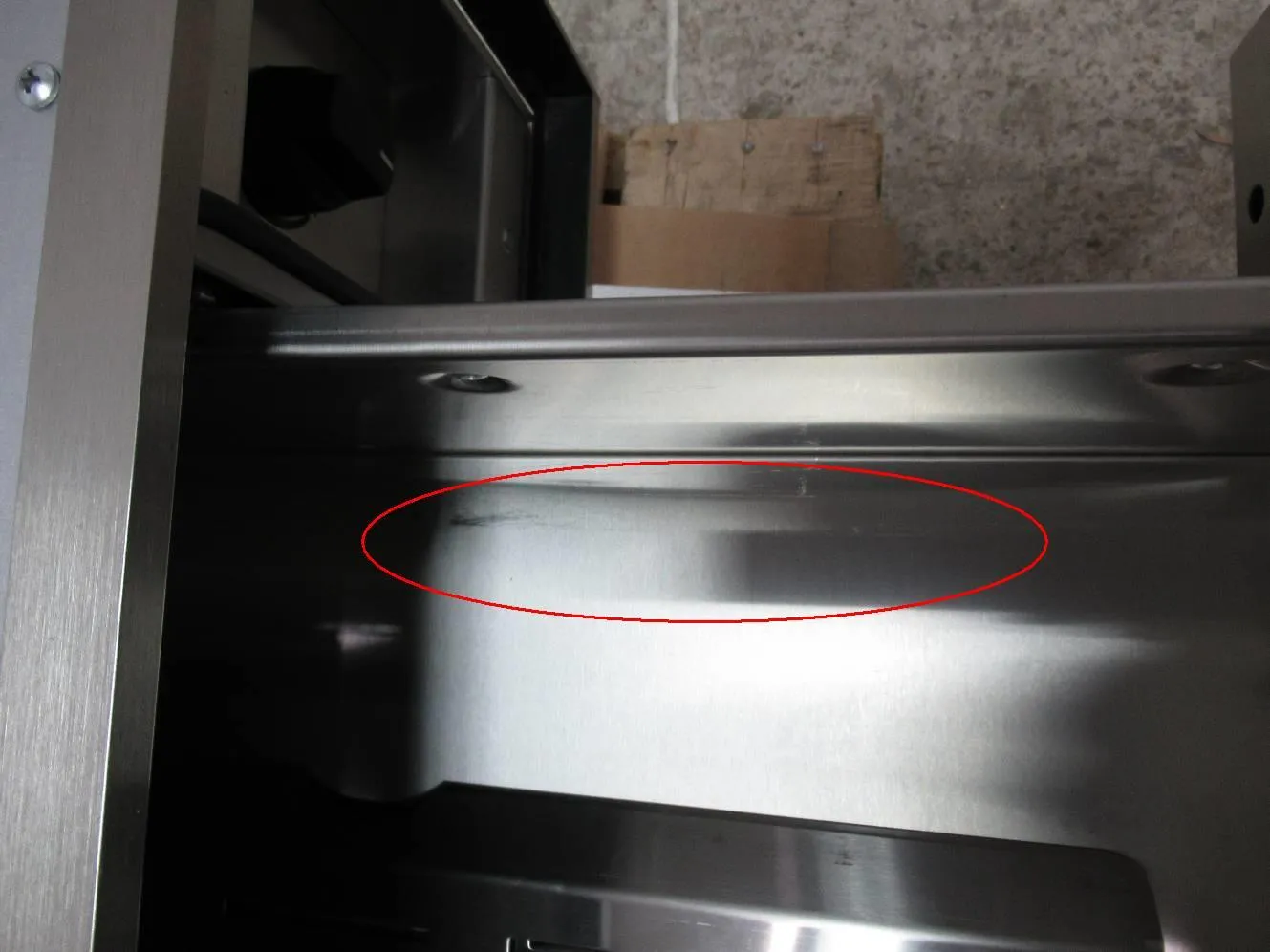

1-SCRATCHES/SCUFFS ON THE HANDLE / TOP OF THE DRAWER AND INSIDE THE DRAWER

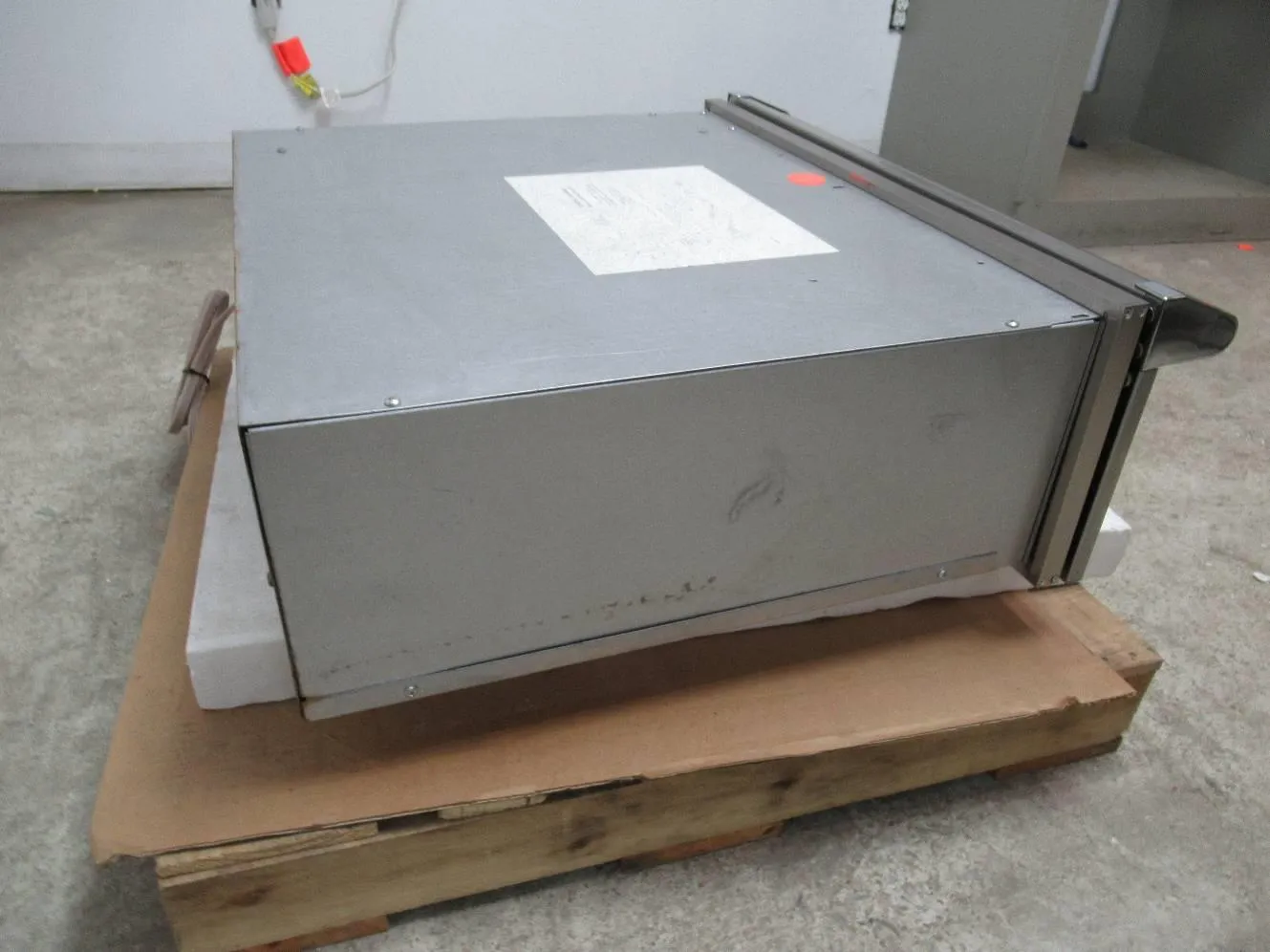

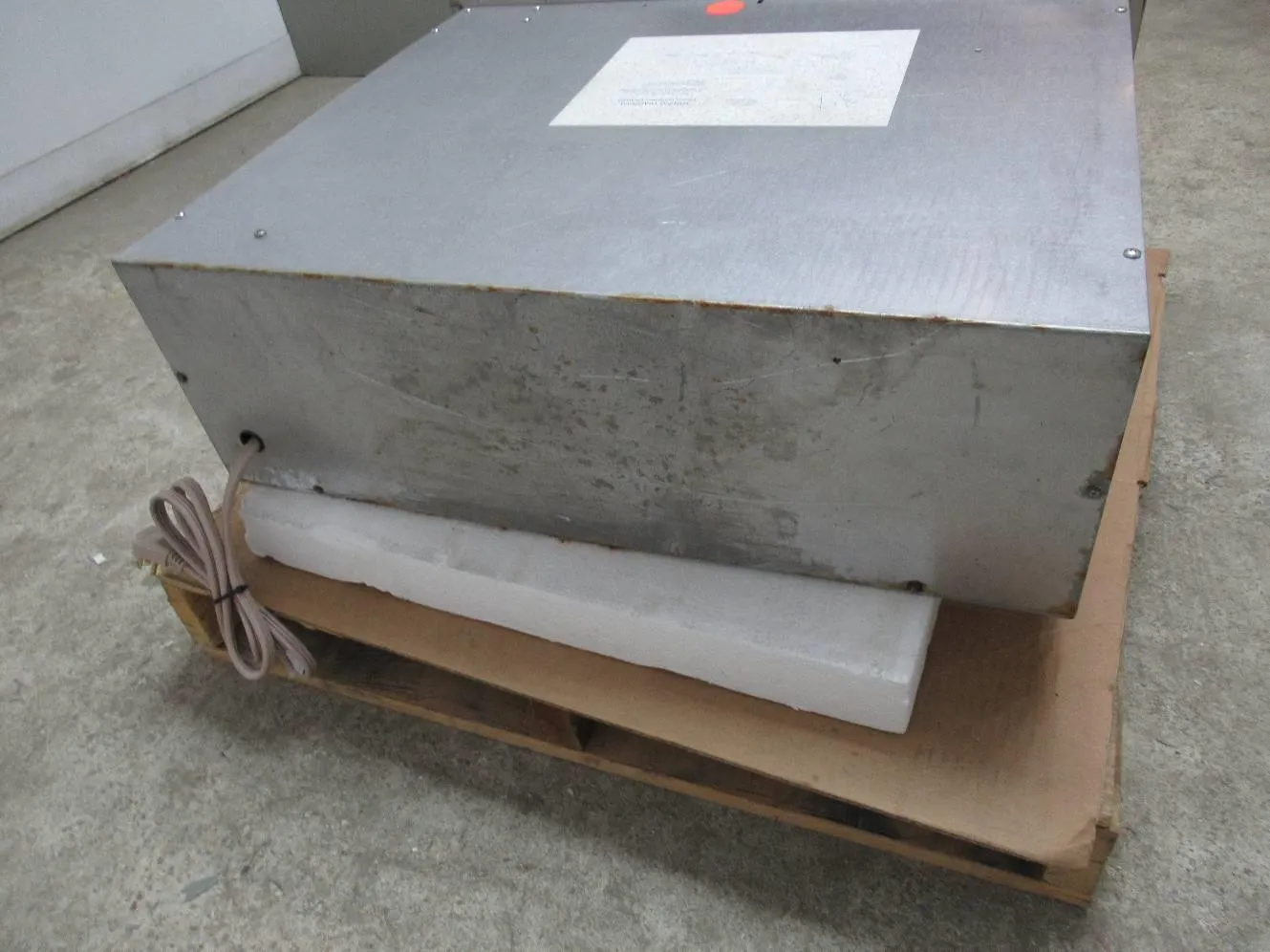

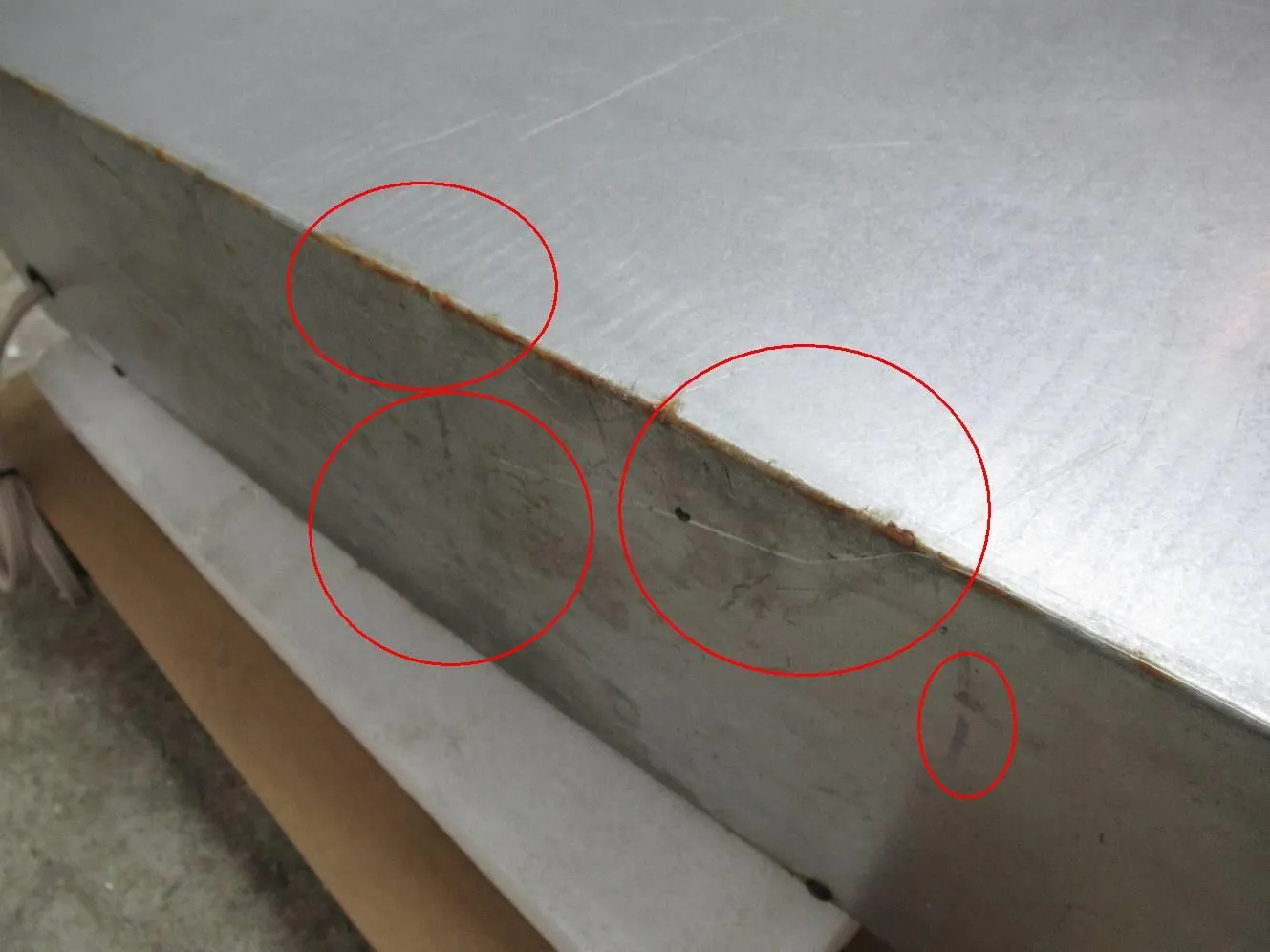

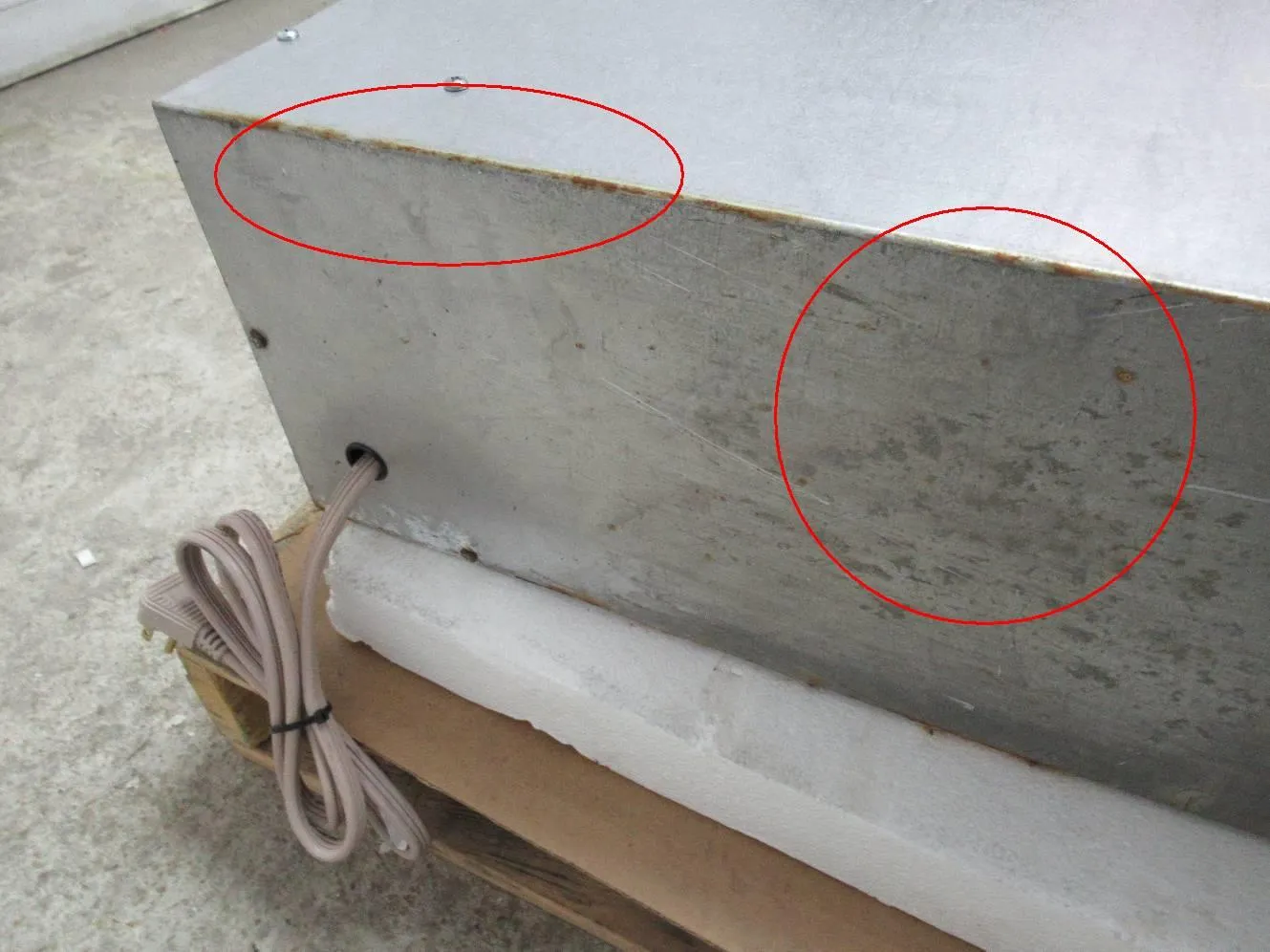

2-SCRATCHES/SCUFFS ON THE UNIT
This unit comes with 90 days Alsurplus warranty

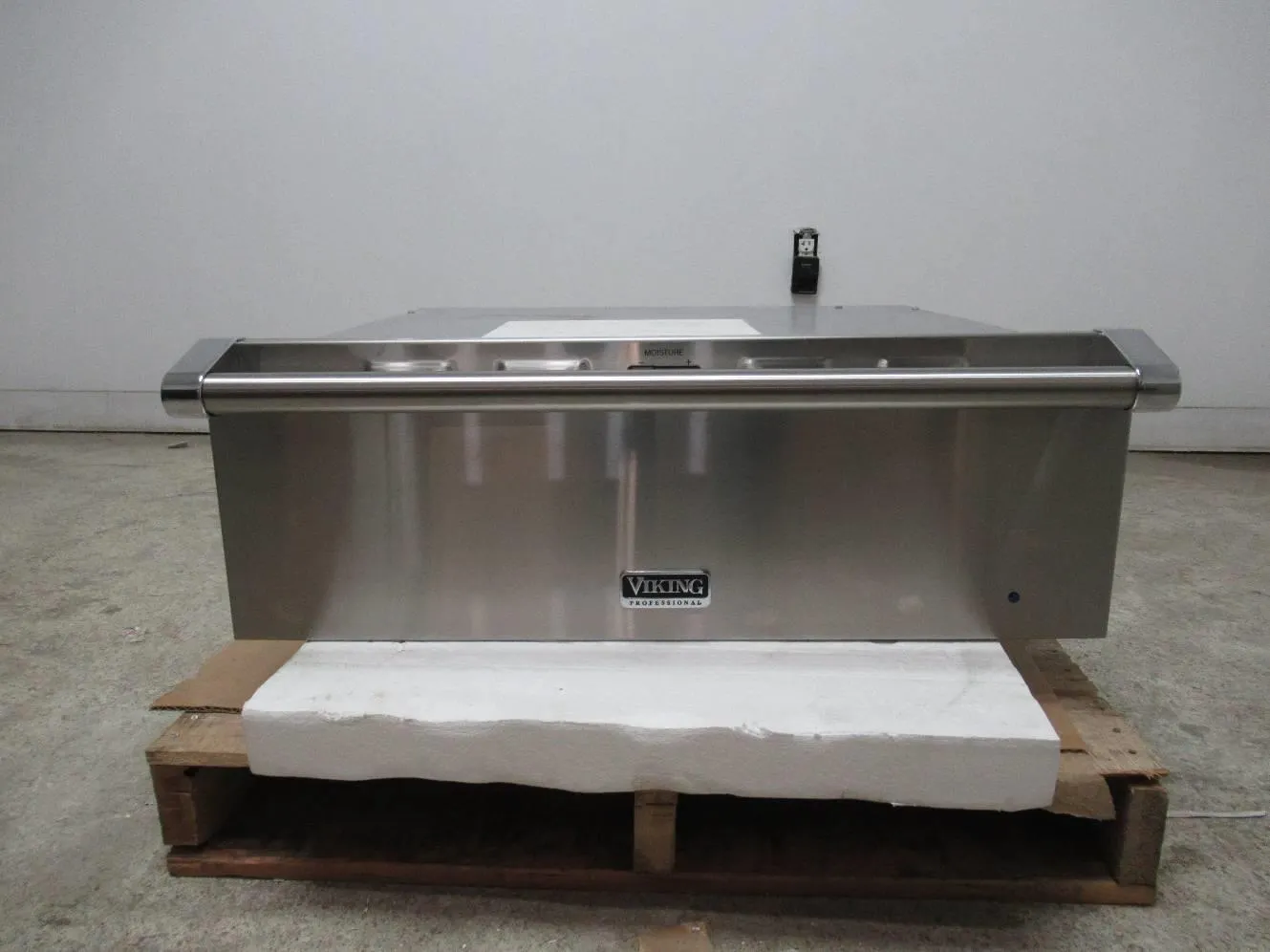

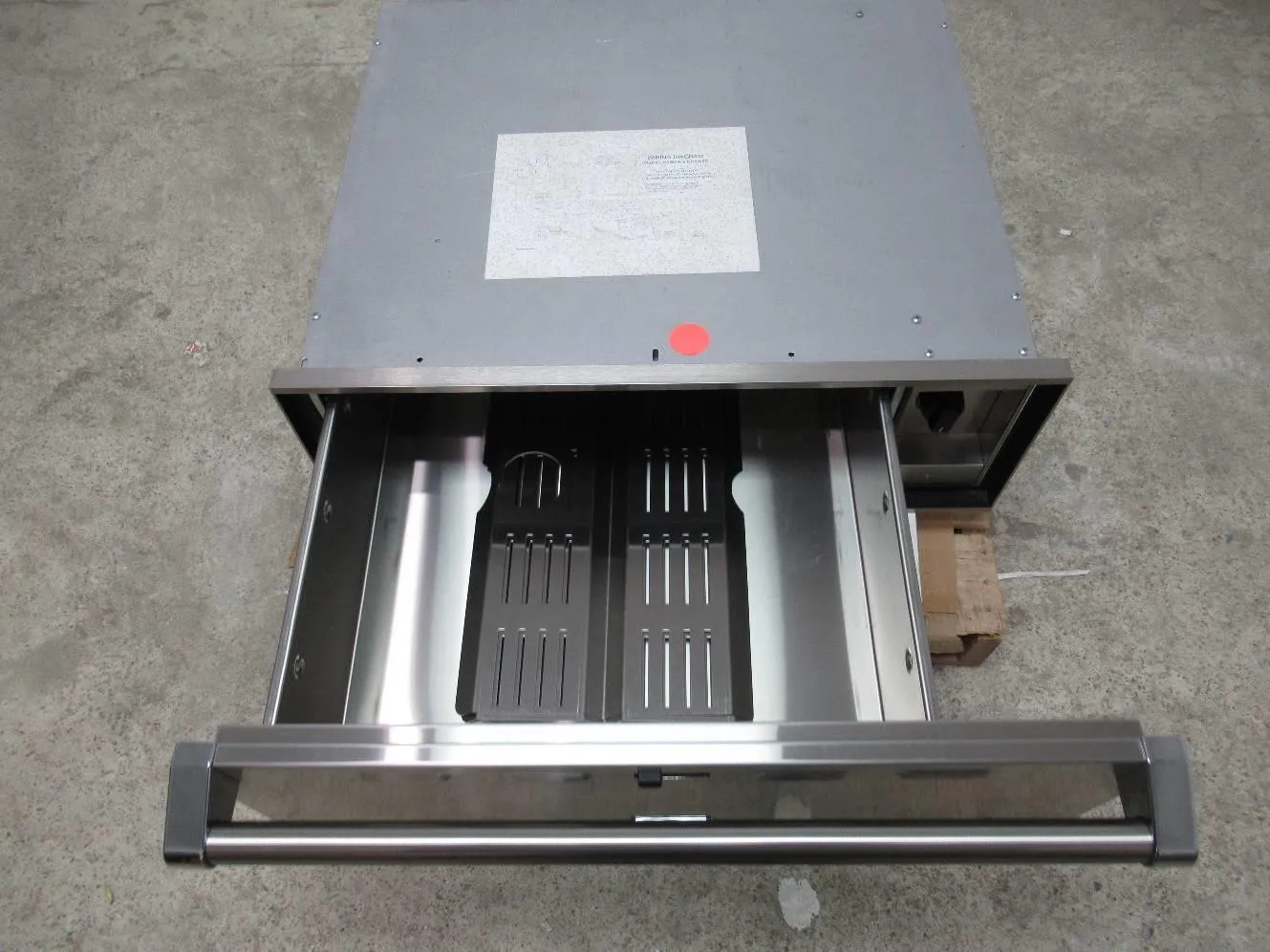

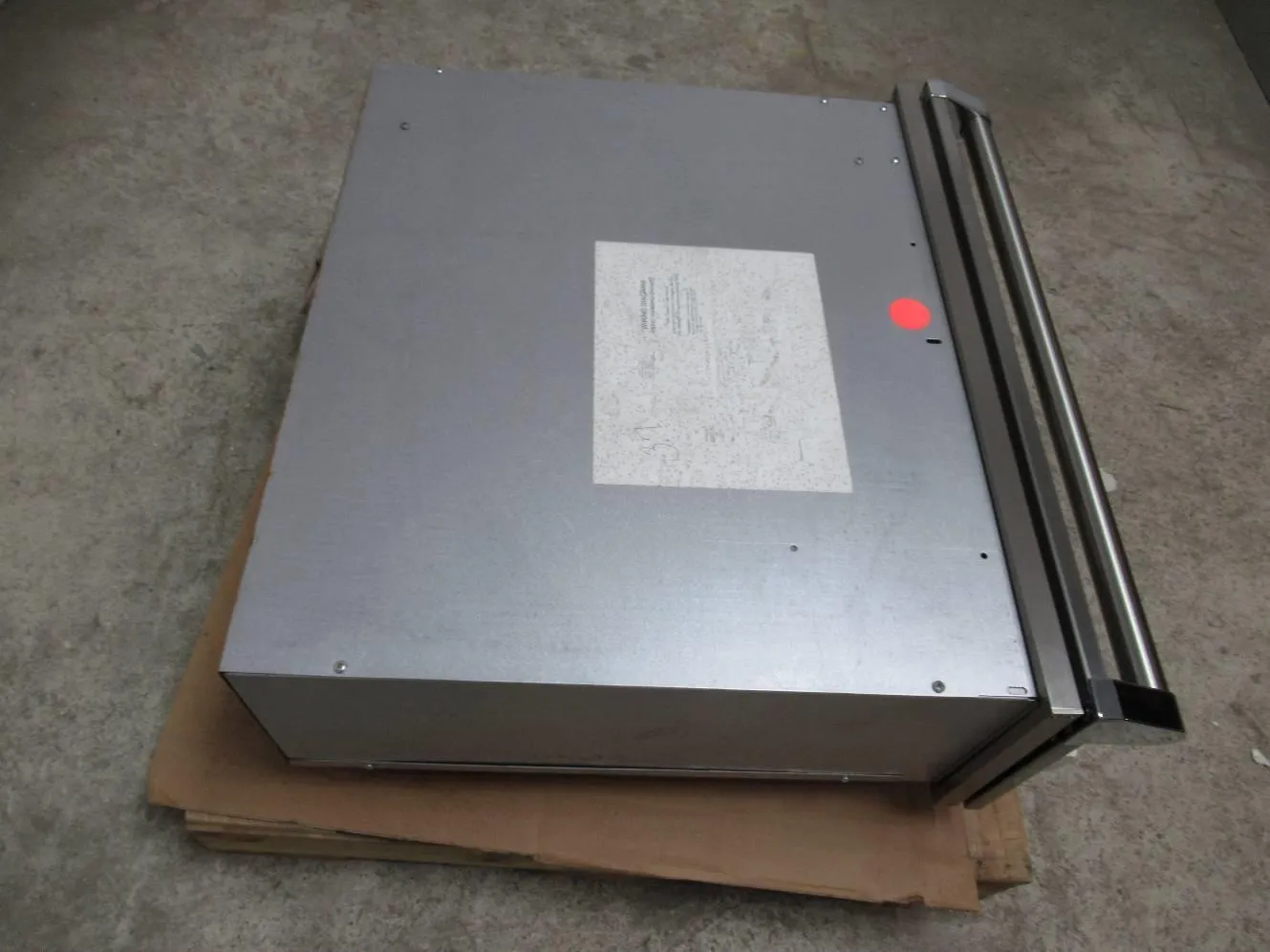

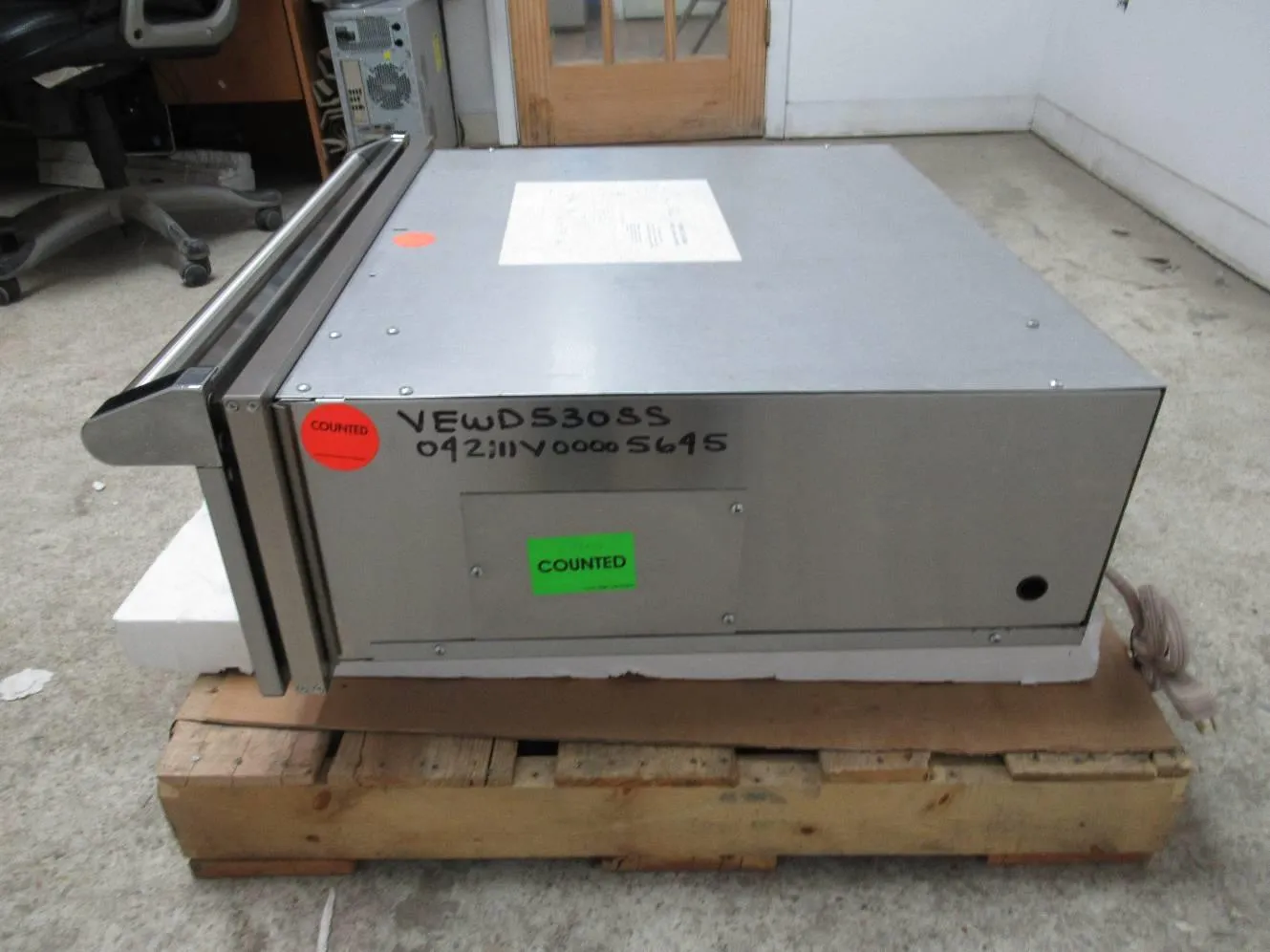

Pictures are of the actual unit.


THIS ITEM MUST BE SHIPPED FREIGHT

SPECIFICATIONS

Capacity:	1.6 Cu. Ft.
Element Rating:	450 Watts
Temperature Range:	90F to 250F
Electrical Requirements:	Hard Wire Direct with Separate 15 Amp Minimum 2-Wire with Ground Circuit; 120 VAC/50-60 Hz
Max. Amp Usage:	3.8 Amps
Approx. Shipping Weight:	90 Lbs.
Interior Oven Dimensions
Interior Width:	20 1/2"
Interior Depth:	22 3/4"
Interior Height:	6"
Overall Dimensions
Overall Width:	29 1/2"
Overall Depth to End of Handle:	26 3/4"
Overall Depth with Drawer Fully Extended:	51 3/8"
Overall Height:	10"
Cutout Dimensions
Standard Cutout Width:	28 1/4"
Standard Cutout Depth:	23 1/2"
Standard Cutout Height:	9 1/4"
Flush Mount Cutout Width:	29 15/16"
Flush Mount Cutout Depth:	25 3/8"
Flush Mount Cutout Height:	10 5/8"

FEATURES

• Professional Warming Features
• Temperature settings from 90 to 250 degrees F accommodate all types of food.
• Low setting is ideal for plate warming or bread proofing.
• High setting keeps soups and sauces piping hot.
• Largest drawer available.
• 20-1/2" wide by 6" high by 22-3/4" deep (1.6 cu. ft.).
• Entire drawer is easily removable for cleaning.
• Versatile moisture-selector control regulates the amount of moisture released from the drawer.
• Adjustments can be made without opening the drawer and affecting the interior temperature and humidity - open vent to keep foods crisp; close vent to keep foods moist.
• Shipped complete with two removable stainless steel low racks and removable stainless steel moisture cup.
• Low racks cover entire bottom of pan for the largest loads or can be used for only half coverage by removing one section.
• Moisture cup holds water to increase interior humidity.
• Powerful 450-watt element.
• Power "on" indicator light cycles on and off with heating element.
• Commercial Construction and Design
• Commercial-type size and styling.
• Heavy-duty drawer handle and perimeter trim.
• Stainless steel roller-bearing glides for smooth drawer operation.
• Large, easy-to-read, commercial-type knob with bezel.
• Optional Warming Drawer Accessory
• Pan/Lid set - Five heavy-gauge stainless steel commercial pans with lids.
• Two 2-1/2" deep by 12" long by 7" wide pans.
• Two 4" deep by 12" long by 7" wide pans.
• One 4" deep by 12" long by 10-1/2" wide pan.
• Exclusive Finishes
• Available in Stainless Steel (SS), Black (BK), White (WH), Apple Red (AR), Graphite Gray (GG), Cobalt Blue (CB), and Burgundy (BU).
• All brass components have a durable, protective coating for maintenance-free normal use.
